PVC compound machine for cable and wire pelletizing line

FOB Reference Price:Get Latest Price
$30,000.00 - $300,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GSJ65/150
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Printing Shops, Construction works , Energy & Mining
Screw diameter (mm):
65 mm
Output (kg/h):
80 - 1000 kg/h
Condition:
New
Application:
Granules
Plastic Processed:
PVC
Screw Design:
single screw and twin screw
Place of Origin:
Jiangsu, China
Brand Name:
GS-mach
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
25M*2.5M*3.5M
Weight:
10T
Certification:
CE ISO9001
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year, 12 Months
Key Selling Points:
Automatic
Capacity:
500-600kg/h
Type:
Granulating Production Line
Color:
Customised
Design:
Depend on customers
Inverter:
Delta or customized
Packing:
Wooden cases
Automatic Grade:
Automatic
Power(W):
11-110KW
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
PVC compound machine for cable and wire,pvc cable material pelletizing line is packed by wooden cases.
Port
Naning port/Shanghai port
Product Description

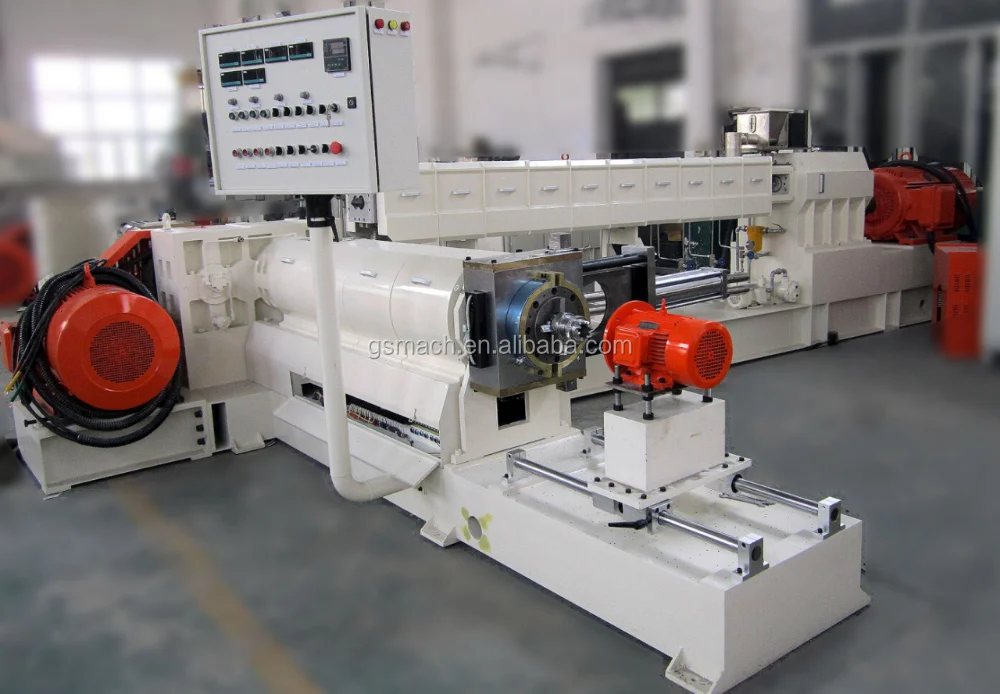

PVC compound machine for cable and wire,pvc cable material pelletizing line

1. This line has excellent mixing performence, good self-cleaning performance and flexible modular configuration characteristics which make them suitable for processing different types of materials.

2. And this machine has been abroad applied to PVC cable material, and also XLPE material, low smoke free halogen cables, shield material,chemical crosslinking cable material, wood plastic, a wide range of uses.

3. It consisted of two stage components. The first stage is GSJ co-rotating twin-screw extruder, the second stage is GSJ single screw extruder. 4. This machine first of all to realize material better compounding and shearing by twin-screw, then the single screw fulfills the task of extruding and granulating.
5. The scientific and advanced structure can avoid material decomposition phenomena due to overheating. To combines the advantage of twin-screw and single screw together and complementation, likewise, propitious to every craft distribution and optimize so that making higher efficient and production capacity.

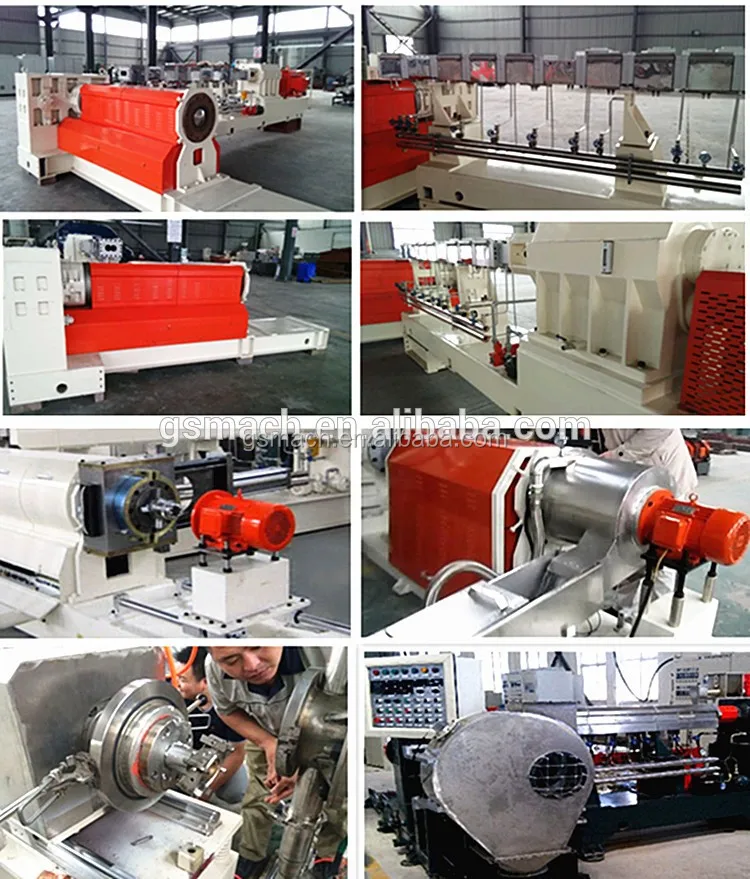

Detailed Images
Specifications

Models of PVC compound machine for cable and wire,pvc cable material pelletizing line

We have several models of two stage extruder lines for your choice, each model has different capacity and price.
Model
Main Frame
Main power(KW)
Rotate speed(rpm)
GSJ50/100
GS50 Twin screw extruder
GSD100 Single screw extruder
37-55
22-45
500-600
60-90
GSJ65/150
GS65 Twin screw extruder
GSD150 Single screw extruder
55-75
45-55
500-600
60-90
GSJ75/180
GS75 Twin screw extruder
GSD180 Single screw extruder
75-132
75-90
500-600
60-90
GSJ95/200
GS95 Twin screw extruder
GSD200 Single screw extruder
250-315
90-132
400-500
60-90

Layout of PVC compound machine for cable and wire,pvc cable material pelletizing line

Below layout is just for your reference, we will provide with you the best and most suitable configurations as per your materials and special production requirements.

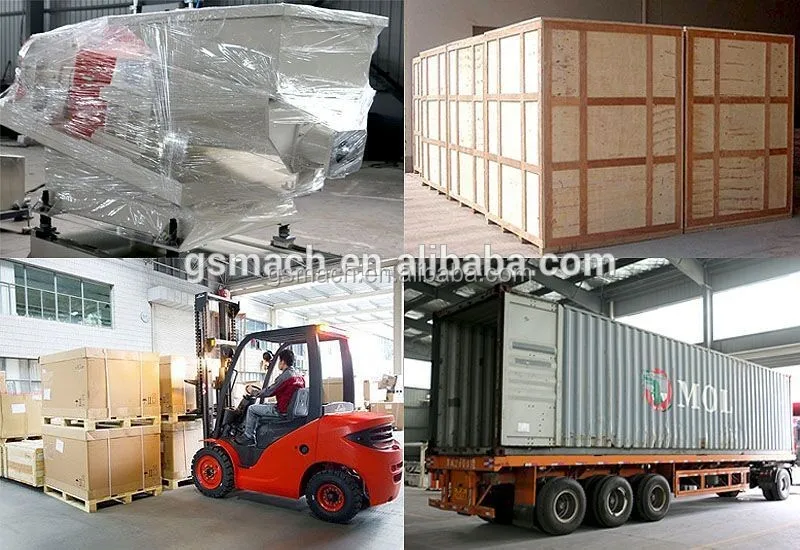

Packing & Delivery

PVC compound machine for cable and wire,pvc cable material pelletizing line

All the machines meet exported packing standard, packed by plastic films and wooden cases.

Our Service
Our Company

GSmach is a professional plastic,rubber and chemicals machinery researcher,designer and manufacturer with CE&ISO9001 certificates.
Our business is consisted of three parts: GS-mach Extrusion, GS-mach Recycle and GS-mach Rubber Tech.
1)GSmach Extrusion : Specializing in the researching and manufacturing the machinery for plastic extruding, granulating,pelletizing and extrusion molding.
2)GSmach Recycle : Specializing in the researching and manufacturing the machinery for waste plastic,rubber and chemicals recycling.
3)GSmach Rubber Tech : Specializing in the rubber machinery researching and manufacturing.

Over the years we have supply the world market, like USA UK FRANCE RUSSIA TURKEY SOUTH ASIA MIDDLE EAST SOUTH AMERICA, all kinds of plastic and rubber machine.

Contact

Email: extruder1(at)njgsmach.com

TEL/WhatsApp/Wechat: +86-18851021608

Comany: Nanjing GS-mach Extrusion Equipment Co.,Ltd.

ADD: No.12 Shanghu Industrial Park, Jiangning Street, Jiangning District, Nanjing, China
